N Jaye
32 posts
TimePosted 20/07/2013 07:37:45
N Jaye says

Probleme with buner

We have a polysius line runing 3 years ago.

The big probleme is the concrete on head of the burner is damage after 2 months.

it seems to melt. After 2 years we change the burner to a nather type , a mutli channel.

But the probleme remain. We loose the concrete after 2 months.

Do somebody have the same problems on his plant.

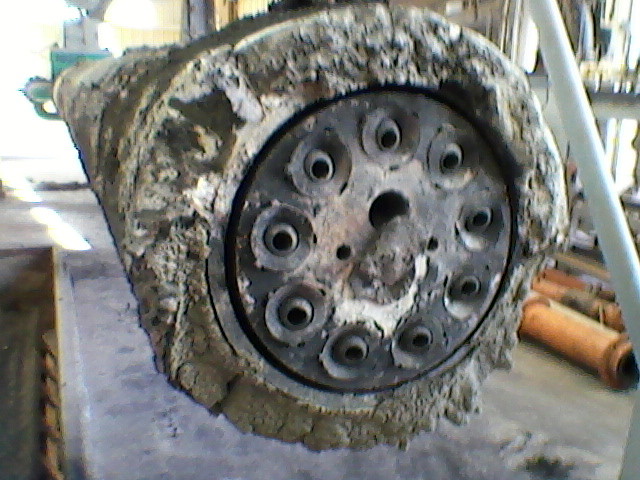

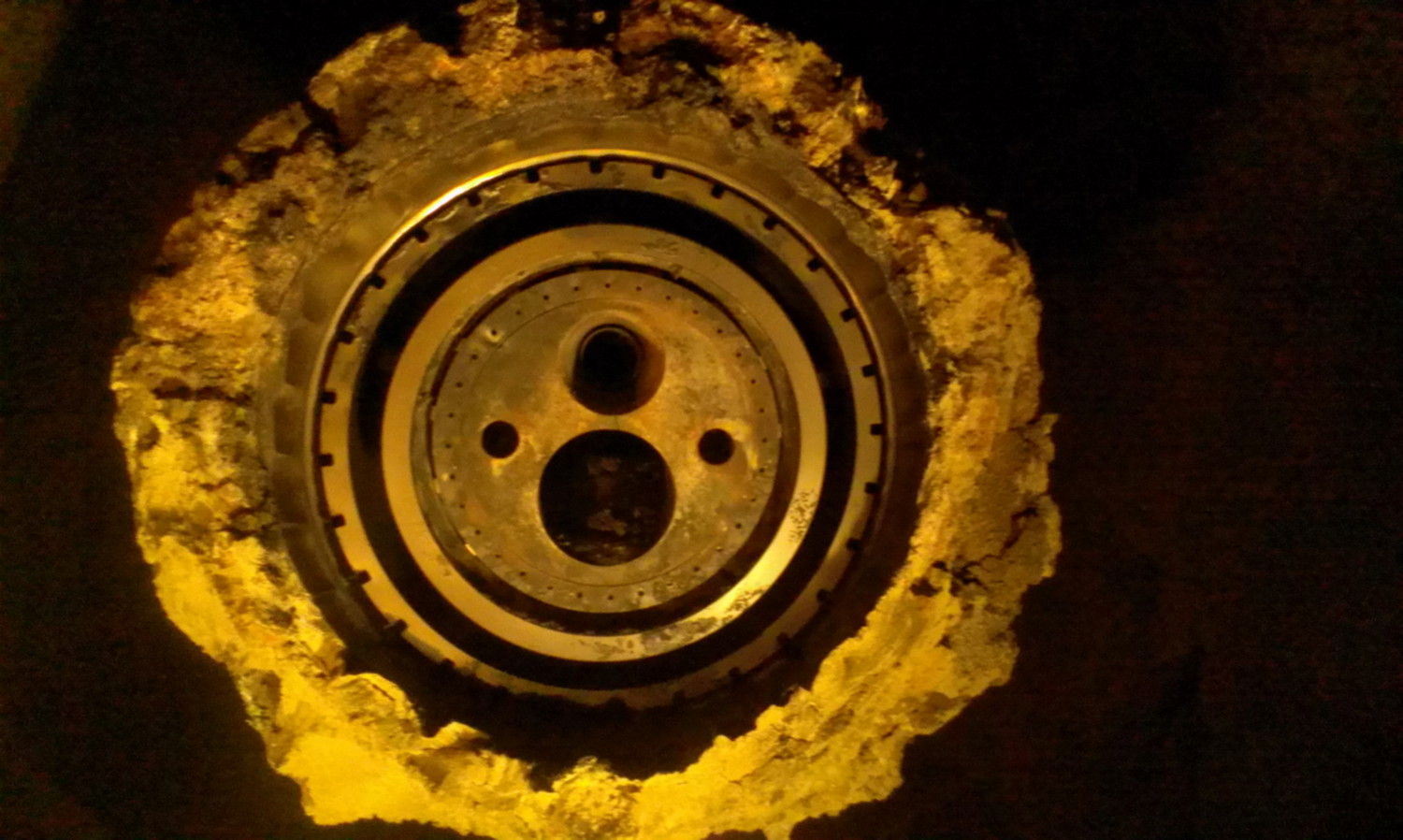

photos are attached.

best regard.

Attached files

Reply


Know the answer to this question? Join the community and register for a free guest account to post a reply.

emadissa
23 posts
TimePosted 23/07/2013 08:11:20
emadissa says

re Probleme with buner

you have to emphasize on the concrete type & installation procedure

how long is the flame black plume in normal operation at certain fuel type?

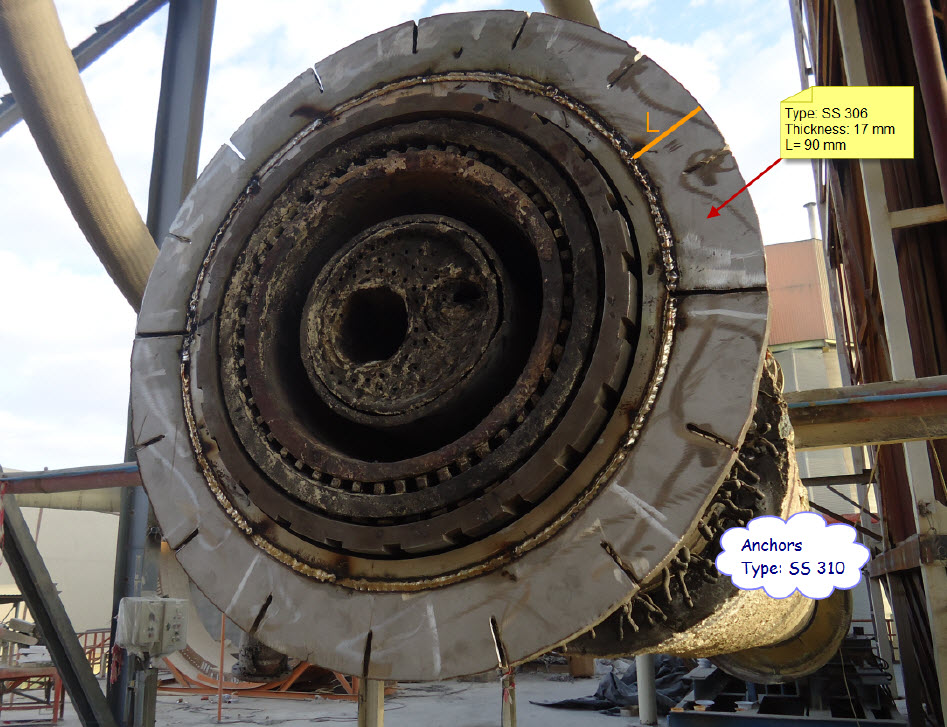

however, as i recall, a turkish expert made good installation of concrete at burner tip using specific mortar castable type that is protected by metal sheet in front of the tip as described in the attached photo

Emad

Attached files

Reply

N Jaye
32 posts
TimePosted 23/07/2013 21:37:52
N Jaye says

re Probleme with buner

We already use this type of protection and it was not working.

The flamme have not a plume. I thing it is the main raison of the damages

Reply

Nasir
11 posts
TimePosted 23/07/2016 10:54:21
Nasir says

re Probleme with buner

How wil you explain the plumb. Would it necessary for coal firing even.

Regard



Nasir

Reply
